DeUX [dø]¶

DeUX is a Python SDK for building standalone applications for Elgato Stream Deck devices. Instead of tethering the Stream Deck to a Windows or macOS PC, DeUX allows it to run from any Python-capable device, including Raspberry Pi systems for home automation, dashboards, kiosks, and embedded control panels.

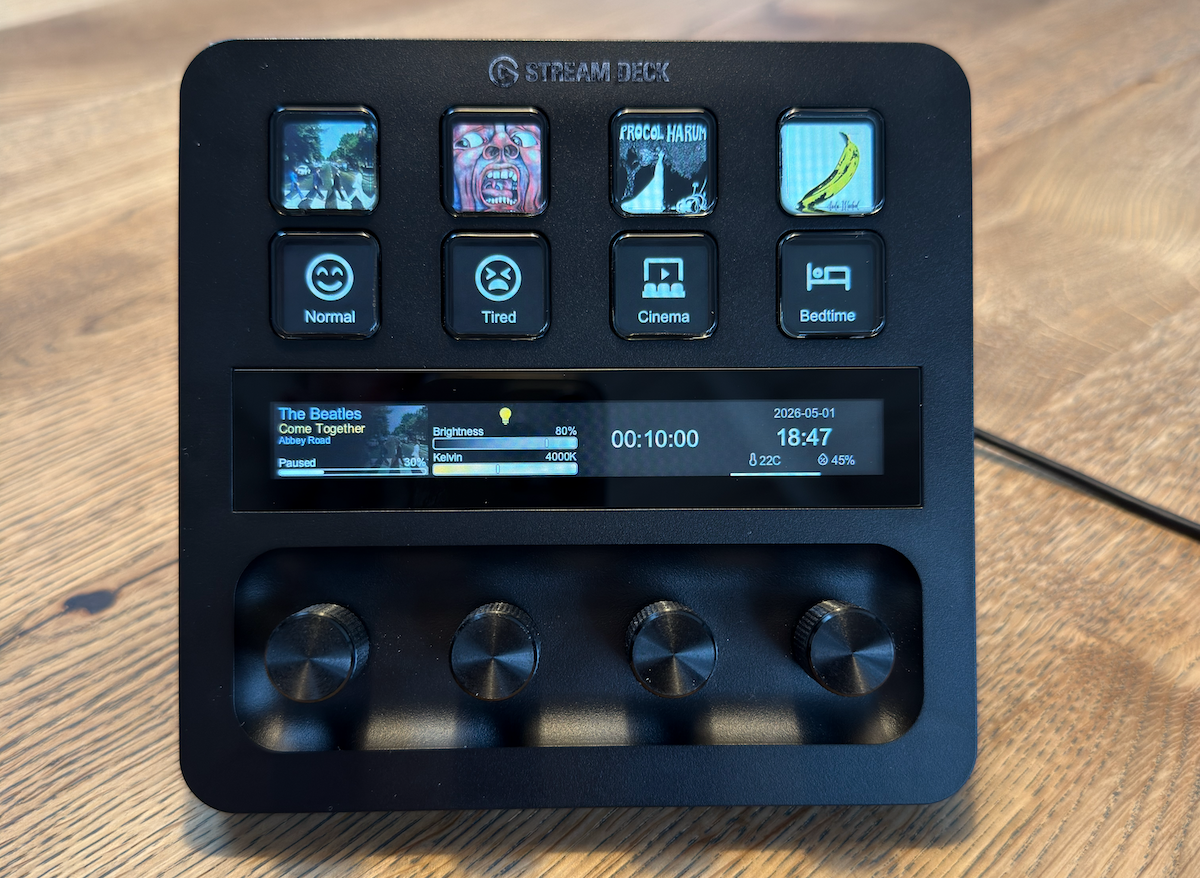

Stream Deck+

Features¶

Multi-deck multi-screen support via DeckManager
Auto-discovery, hot-plug detection, and auto-reconnect via DeckManager
Screen-based navigation with atomic screen switching
Key slots with event decorators (press, release, press_release, hold)
Encoder slots for rotary dial events (turn, press, release, press_release, hold)
TouchStrip and InfoScreen support
.dui package format: declarative touchscreen card UIs using SVG layouts + YAML manifests with data bindings
Iconify icon integration
Supports Stream Deck (Classic 15-key), Stream Deck XL, Stream Deck Neo, Stream Deck+, and Stream Deck+ XL

System requirements¶

Python 3.11+
HIDAPI (For USB HID communication)

Quick Start (macOS)¶

Install system dependencies, clone the repo, and run the example:

brew install hidapi

git clone https://github.com/graphras-com/DeUX.git
cd DeUX

python3 -m venv .venv
source .venv/bin/activate
pip install .

python examples/streamdeck.py

Quick Start (Linux)¶

Install system dependencies, clone the repo, and run the example:

apt-get install libhidapi-dev

git clone https://github.com/graphras-com/DeUX.git
cd DeUX

python3 -m venv .venv
source .venv/bin/activate
pip install .

python examples/streamdeck.py

Installation¶

Install directly from GitHub:

pip install git+https://github.com/graphras-com/DeUX.git

Or clone and install locally:

git clone https://github.com/graphras-com/DeUX.git
cd DeUX
pip install .

For development:

pip install -e ".[test]"

Usage¶

import asyncio
from deux import DeckManager, DuiKey

async def main():
    manager = DeckManager()

    @manager.on_connect()
    async def handle(deck):
        screen = deck.screen("main")
        # DuiKey accepts a built-in package name (e.g. "IconKey") or a PackageSpec
        # returned by load_package(). See docs/guides/dui-repository.md for details.
        key = DuiKey("IconKey")
        key.set("label", "Hello")
        key.set("icon", "mdi:hand-wave")

        @key.on("click")
        async def on_click():
            print("Clicked!")

        screen.set_key(0, key)

        await deck.set_screen("main")

    async with manager:
        await manager.wait_closed()

asyncio.run(main())

Note: on_connect() is a decorator factory (call with parens) and accepts optional serial= / deck_type= filters. on_disconnect is a property — use it bare, without parens (@manager.on_disconnect).

Configuration¶

No environment variables are required. Device capabilities are auto-detected from hardware.

.dui packages are configured via YAML manifests defining bindings (text, image, visibility, color, range, slider, toggle, iconify) and event mappings.

DeUX ships with three ready-to-use packages — IconKey, PictureKey, and DashboardCard — that the quick-start example uses by name. See the DUI Repository & Built-in Packages guide for the full catalogue and instructions on registering your own package directories. To author new packages, see Creating DUI Packages.

Development¶

Run tests:

pytest

Run tests with coverage (95% threshold):

pytest --cov=deux --cov-fail-under=95

Lint:

ruff check .

Type check:

mypy

Security¶

Secrets scanning via Gitleaks runs on every CI pipeline with full git history scanning
No secrets or credentials are stored in the repository

CI/CD¶

GitHub Actions orchestrates all checks via ci.yml:

Lint -- Ruff
Build -- Package build verification
Type check -- mypy (strict mode)
Tests -- pytest across Python 3.11, 3.12, 3.13 with 95% coverage threshold
Secrets scan -- Gitleaks
Release -- Triggered on v* tags after quality gate passes

Dependabot is enabled for weekly updates of pip and GitHub Actions dependencies.

Contributing¶

Contributions are welcome. Please open an issue or pull request. This project follows the Contributor Covenant v2.0 code of conduct.

License¶

Apache-2.0 -- see LICENSE.
